The Aluminum Flexible Metal Conduit is made with Aluminum material and this kind of conduit weights considerably less than other conduits. This is the series of reduced wall & lightweight Flexible Metal Conduit manufactured with aluminum strip. It has a spiral construction that enables it to snake through walls and other structures. The conduit protects electrical wiring in commercial and industrial buildings. It has good softness, corrosion resistance, abrasion resistance and tensile property. Our material is RoHS approved and suitable for most environments and temperatures.
Completely meet with UL1 standard. When using for electrical installation, shall refer to the regulation of NEC. The size of 5/16”, is especially recommended for the wire protection in limit spaces or for light fixtures. The small size and bending radius offer advantage to satisfy the wiring environment of narrow space and corners.
Material: Aluminum

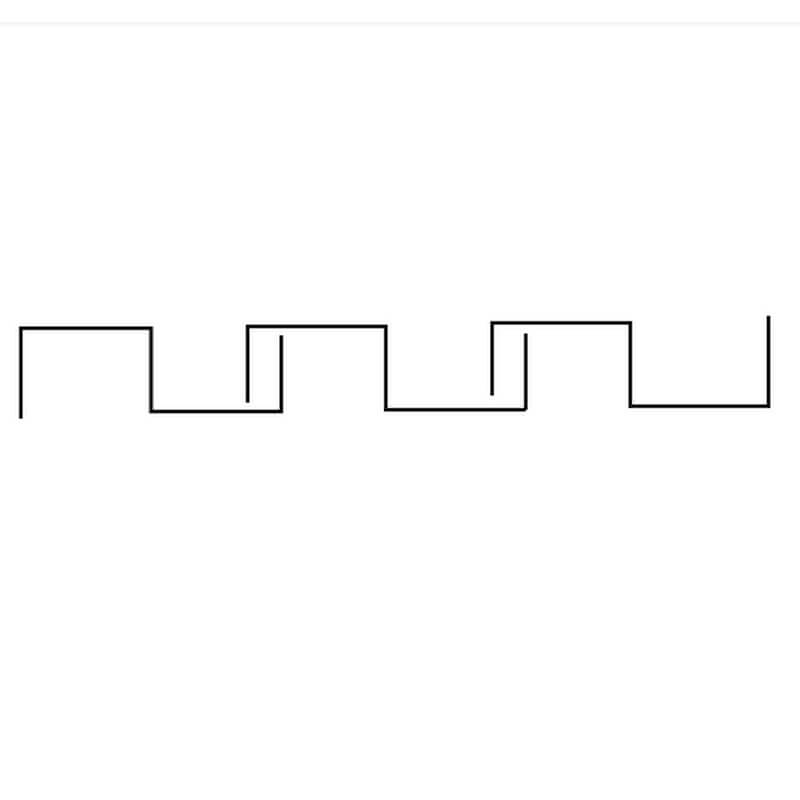

Profile: Square locked
Inside diameter: customize from 2mm-the size you want
Length: customize.
We can provide the corresponding connectors or fittings.
Electrical protection in buildings, Railway Systems, Marines, Elevators and etc.
Mated With
Set Screw Type Conduit Fitting
Set In Type Conduit Fitting
Two Screw Type Conduit Fitting
90 Degree Squeeze Conduit Fitting
Screw On Type Conduit Fitting
Straight Squeeze Conduit Fitting
Screw In Coupling
| Series Number | ID (mm) | OD (mm) | Length (m) |
| ALUM 006 | 6 | 8 | 100m or customize |
| ALUM 007 | 7 | 9 | 100m or customize |
| ALUM 008 | 8 | 10 | 100m or customize |
| ALUM 009 | 9 | 11 | 100m or customize |
| ALUM 010 | 10 | 12.7 | 100m or customize |
| ALUM 012 | 12 | 14.5 | 100m or customize |
| ALUM 013 | 13 | 15.5 | 100m or customize |
| ALUM 016 | 16 | 18.7 | 100m or customize |
| ALUM 020 | 20 | 23.2 | 100m or customize |
